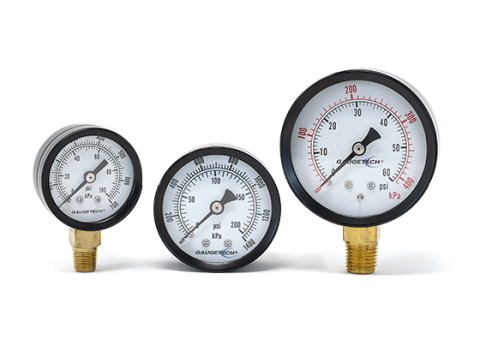

Gauge #1 Gauge #2 Gauge #3

Economy Pressure Gauges

Gaugetech® economy (utility) gauges are an inexpensive alternative for the broad commercial and industrial market. These gauges provide 3-2-3% accuracy for measuring water, oil, gas, or any medium not corrosive to brass or phosphor bronze.


Ranges: Refer to range chart
Dial Size: 1.5", 2", 2.5", 4.5"
Accuracy: ± 3%-2%-3% ASME B40.1 Grade B
Case: Black Painted Steel (dry only)
Socket: Phosphor Bronze Bourdon Tube and brass socket
Lens: Glass
1/8" NPT available on 1.5" and 2" dial size.
1/4" NPT available on 2", 2.5" and 4.5" size.
Bottom or center back connections available on 1.5", 2" and 2.5" dial sizes.
4.5" dial size available with bottom connection only.
