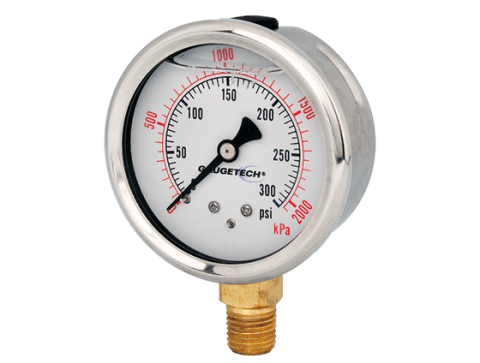

GTG2510 Series 2.5"/63mm

Brass Internal Pressure Gauges
1/4"Npt Bottom or Center Back Mount

Chemical and petrochemical industries, conventional and nuclear power plants, pumps, hydro-cleaning machines, presses, engine compressors, turbines, diesel engines and refrigerating plants, food and beverage, pharmaceutical industries. For measuring water, oil, gas or any medium not corrosive to brass or phosphor bronze.


Accuracy: ASME B40.1, Grade B, ±3-2-3%
Ambient temperature:  -40°C to +65°C
Process temperature: Max 100°C (Dry) Max 65°C (Filled)
Operating pressure: 75% of the scale value
Over pressure limit: 25% of full scale value
Case: AISI 304 SS
Ring: AISI 304 SS, crimped ring
Bourdon Tube: Phosphor Bronze
Socket: Brass
Movement: Phosphor Bronze
Dial: Aluminum, black & red graduation on white background
Pointer: Aluminum, black
Window: Plexiglas
Fill: Glycerine/H20 -40ËšC (standard)  Silicone (optional)
Gaskets/Vent/Blow out Plugs: Neoprene
Standard Scale: psi/kPa (standard), special dials & scales available
Connection: 1/4” NPT (standard)

AB CRN# OF17866.2
