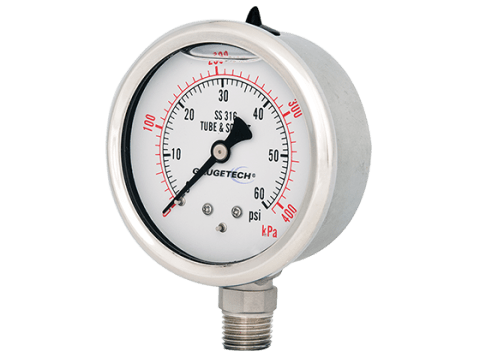

GTG2518 Series 2.5"/63mm

Stainless Steel Pressure Gauges
1/4" NPT Bottom or Center Back Mount

Chemical and petrochemical industries, conventional and nuclear power plants, pumps, hydro-cleaning machines, presses, engine compressors, turbines, diesel engines and refrigerating plants, food and beverage, pharmaceutical industries.


Accuracy: ASME B40.1, Grade B, ±3-2-3%
Ambient temperature: -40°C to +65°C
Process temperature: Max 100°C (Dry) Max 65°C (Filled)
Operating pressure: 75% of the scale value
Over pressure limit: 25% of full scale value
Case: AISI 304 SS
Ring: AISI 304 SS, Crimped Ring
Bourdon Tube: AISI 316L SS
Socket: AISI 316L SS
Movement: AISI 304 SS
Dial: Aluminum, black & red graduation on white background
Pointer: Aluminum, black
Window: Plexiglas
Fill: Glycerine/H20 -40ËšC (standard), Silicone (optional)
Gaskets & Vent & Blow out Plugs: Neoprene
Scale: psi/kPa standard, special dials & scales available
Connection: 1/4" NPT (standard)

AB CRN# OF17866.2
AB CRN# OF17866.21
AB CRN# OF17866.23
