90˚ Angle Valves
Soft Seat
6,000 psi

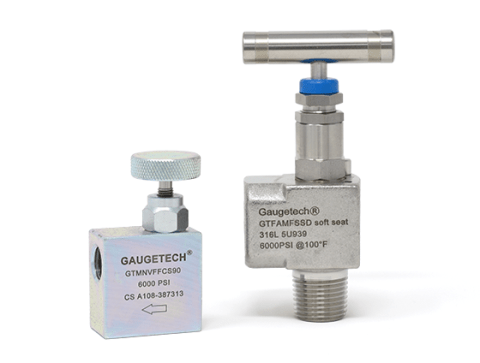

Gaugetech Series 90˚ Angle Valves series are machined from either bar stock or forged materials and supplied in 316 stainless steel and carbon steel with nickel zinc plate. Our 90˚ Valves are available in 1/2” NPT and 1/4” NPT with male-female threaded connections. These soft seat valves are designed with a Delrin® seat to ensure a tight shut off, even in abrasive process conditions.

FEATURES
  • Delrin® soft seat standard.
  • The stem threads are rolled and lubricated to prevent galling and reduce operating torque.
  • All bonnets are assembled with a locking pin to prevent accidental removal while in service.
  • Teflon® packing can be adjusted to increase valve life.
  • Stem packing below the threads prevents lubricant washout and ensures no process contamination.
  • The valves feature safety back seating to ensure a secondary stem seal.
  • Dust caps are fitted to contain stem lubricant and prevent the ingress of contaminants.
  • All valves are hydrostatically tested to 1.5 times maximum working pressure prior to shipment.
  • The valves are Mill Test Traceable.
  • 316SS material traceable to NACE MR0175.
  • AB CRN# OC08236.2
  • BC CRN# OC08236.21
  • SK CRN# OC08236.23
