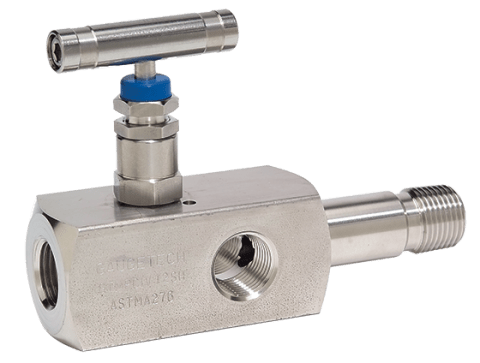

Chemical Injection Reversed Multi-Port Valve

6,000 psi, hard seat, 316SS, 1/2" NPT Ports

The Gaugetech® chemical injection valve has all the features of our multi-port gauge valve. The ports are reversed for special field applications which in turn can reduce the use  of other valves when used instead of a standard multiport valve. GTMPCIV series are produced with a 1⁄2” MNPT process connection with female 1⁄2” NPT Ports. The GTMPCIV series are designed with a metal seat for severe working conditions.

  • Non-rotating stem plug moves axially into and out of the seat without rotation to eliminate seat galling.
  • The stem threads are rolled and lubricated to prevent galling and reduce operating torque.
  • Valves are assembled with standard T-bar handles.
  • All bonnets are assembled with a locking pin to prevent accidental removal while in service.
  • Teflon® packing can be adjusted to increase valve life.
  • Stem packing below the threads prevents lubricant washout and ensures no process contamination.
  • The valves feature safety back seating to ensure a secondary stem seal.
  • Dust caps are fitted to contain stem lubricant and prevent the ingress of contaminants.
  • All valves are hydrostatically tested to 1.5 times maximum working pressure prior to shipment.
  • The valves are Mill Test Traceable.
  • 316SS material traceable to NACE MR0175.
  • AB CRN# OC08236.2
  • BC CRN# OC08236.21
  • SK CRN# OC08236.23
