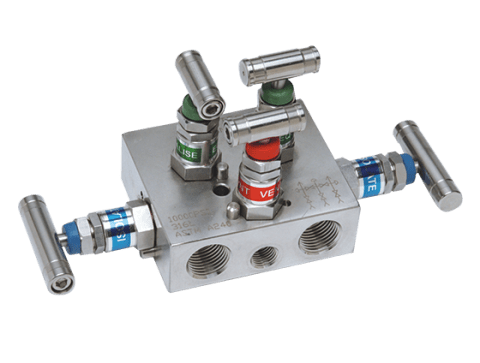

GT5M 5 Valve Manifold

Hard seat, pipe to pipe
10,000 psi

Gaugetech five valve manifolds are supplied in 316L stainless steel and carbon steel with white zinc plate. GT5M series are produced in 1/2" NPT female-female, pipe to pipe threaded connections. The GT5M series are designed with a metal seat for severe working conditions.

FEATURES
  • Non-rotating stem plug moves axially into and out of the seat without rotation to eliminate seat galling.
  • The stem threads are rolled and lubricated to prevent galling and reduce operating torque.
  • Valves are assembled with standard T-bar handles.
  • All bonnets are assembled with a locking pin to prevent accidental removal while in service.
  • Teflon® packing can be adjusted to increase valve life.
  • Stem packing below the threads prevents lubricant washout and ensures no process contamination.
  • The valves feature safety back seating to ensure a secondary stem seal.
  • Dust caps are fitted to contain stem lubricant and prevent the ingress of contaminants.
  • All valves are hydrostatically tested to 1.5 times maximum working pressure prior to shipment.
  • The valves are Mill Test Traceable.
  • Standard valve on manifold has a 4.8mm orifice size. Cv 0.52 MAX
  • 316SS material traceable to NACE MR0175.
  • AB CRN# OC08236.2
  • BC CRN# OC08236.21
  • SK CRN# OC08236.23
