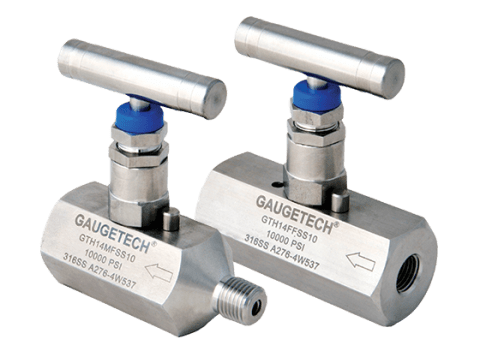

GTH Series Needle Valves

Hex stock, hard seat
6000 and 10,000 PSI

The GTH series are machined from hexagonal bar stock and supplied in 316 stainless steel and carbon steel with nickel zinc plate. GTH series are produced in 1/4", 1/2” and 3/4” NPT with male-female and female-female threaded connections. The GTH series are designed with a metal seat for severe working conditions.

FEATURES
  • Non-rotating stem plug moves axially into and out of the seat without rotation to eliminate seat galling
  • The stem threads are rolled and lubricated to prevent galling and reduce operating torque
  • Valves are assembled with standard T-bar handles
  • All bonnets are assembled with a locking pin to prevent accidental removal while in service
  • Teflon® packing can be adjusted to increase valve life
  • Stem packing below the threads prevents lubricant washout and ensures no process contamination
  • The valves feature safety back seating to ensure a secondary stem seal
  • Dust caps are fitted to contain stem lubricant and prevent the ingress of contaminants
  • All valves are hydrostatically tested to 1.5 time’s maximum working pressure prior to shipment
  • The valves are Mill Test traceable.
  • 316SS material traceable to NACE MR0175.
  • AB CRN# OC08236.2
  • BC CRN# OC08236.21
  • SK CRN# OC08236.23
