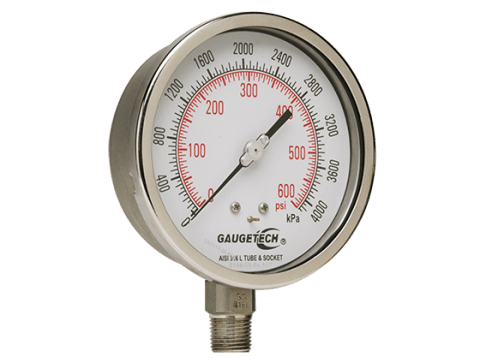

GTG45 Series 4.5"/115mm

Stainless Steel Pressure Gauges
1/2" NPT Bottom Mount

Chemical and petrochemical industries, conventional and nuclear power plants, pumps, hydro-cleaning machines, presses, engine compressors, turbines, diesel engines and refrigerating plants, food and beverage, pharmaceutical industries.

SPECIFICATIONS

Accuracy: ±1.0% of full scale, ASME B40.1 Grade 1A
Ambient temperature: -40°C to +65°C
Process temperature: Max 300°C (Dry) Max 65°C (Filled)
Operating pressure: 75% of the scale value
Over pressure limit: 25% of full scale value
Case: AISI 304 SS
SS Ring: AISI 304 SS, bayonet type
Bourdon Tube: AISI 316L SS
Socket: AISI 316L SS (directly welded to case)
Movement: AISI 304 SS
Welding: Tig argon arc welding
Protection: IP 55
Dial: Aluminum, black & red graduation on white background
Pointer: Aluminum, black colored micrometer zero adjustable
Window: Plexiglas
Fill: Gycerine/H2O (standard), silicone (optional)
Gaskets & Vent & Blow Out Plugs: Neoprene
Scale: Psi/kPa (standard), special dials & scales available
Connection: 1/2" NPT (standard)
Options:  Certifiable to 1% NIST traceability. Oxygen Cleaned (dry case only)

AB CRN# OF08136.2
BC CRN#
OF08136.21
SK CRN#
OF08136.23
