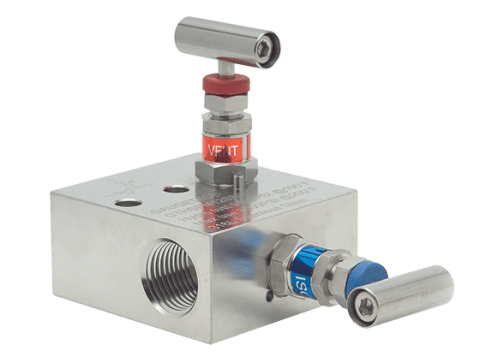

GTHSPM 2 Valve Calibration Manifold
Soft seat, pipe to pipe
3,000 psi, 316SS and A108 Carbon Steel
Gaugetech® two valve manifolds are supplied in 316L stainless steel are produced in 1⁄2” NPT female-female, pipe to pipe threaded connections. GTH soft seat series valves are designed with a Delrin® seat to ensure a tight shut off even in abrasive process conditions.
FEATURES
- Delrin® soft seat standard.
- The stem threads are rolled and lubricated to prevent galling and reduce operating torque.
- Valves are assembled with standard T-bar handles.
- All bonnets are assembled with a locking pin to prevent accidental removal while in service.
- Teflon® packing can be adjusted to increase valve life.
- Stem packing below the threads prevents lubricant washout and ensures no process contamination.
- The valves feature safety back seating to ensure a secondary stem seal.
- Dust caps are fitted to contain stem lubricant and prevent the ingress of contaminants.
- All valves are hydrostatically tested to 1.5 times maximum working pressure prior to shipment.
- The valves are Mill Test Traceable.
- Standard valve on manifold has a 4.8mm orifice size. Cv 0.52 MAX
- 316SS material traceable to NACE MR0175.
- AB CRN# OC08236.2
- BC CRN# OC08236.21
- SK CRN# OC08236.23
